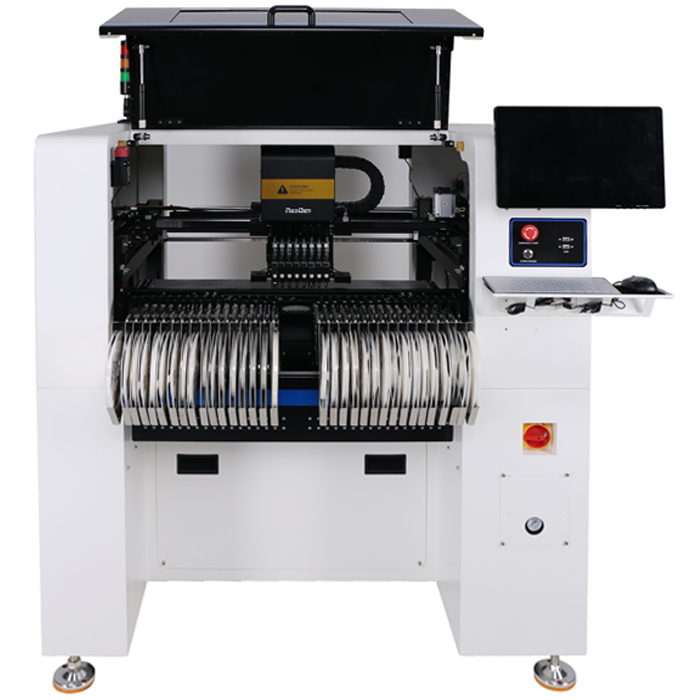

NeoDen8 features 8 simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expand ability and compatibility. Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement speed of 16,000 CPH.

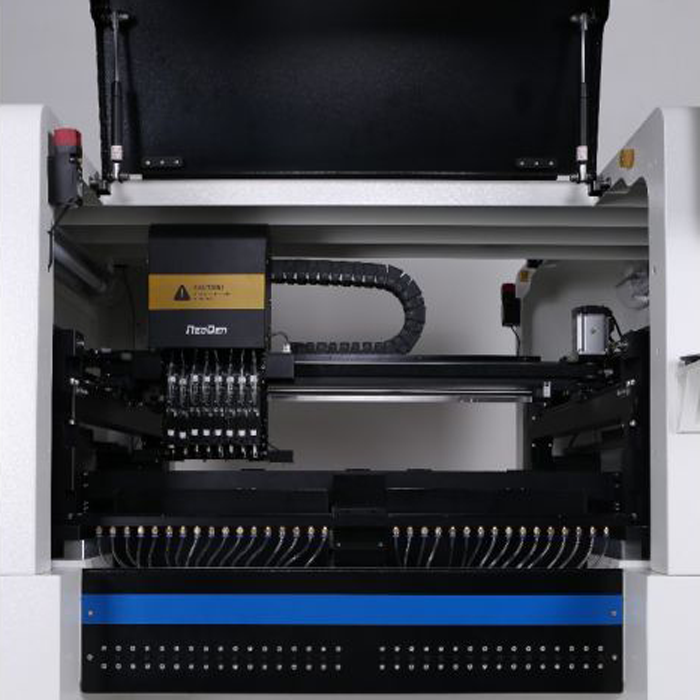

| 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed. |
| Machine runs on highly stable and secure Linux operating system. |
| operating system, Double mark cameras to reach at extreme end feeders for better calibration. |
| High resolution and high-speed component camera system improves the overall speed of the machine. |
| Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible. |
| Closed loop Servo control system with feedback makes the machine to function more accurate. |
| Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency. |
| PCB location can be calibrated automatically and promptly, based on the correct and specific placement request. |
| Model | : | NeoDen N8 |
| No.of Placement Heads | : | 8 |
| Vision Alignment | : | Flying Vision |
| Placement Rate | : | 16000 CPH |
| Feeder Capacity | : | 66 pcs (all 8mm width tape feeder) |
| Smallest Component | : | 0201 |
| Max. Component Height | : | 20mm |
| Rotation | : | ±180° |
| Placement Accuracy | : | 0.01mm |
| Air Source | : | 8bar, 32L/min, 100L Capacity |
| Supported Reel Size | : | 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm |
| Max Board Dimension | : | 540mm 300mm (1500mm optional) |
| Control System | : | Closed Loop Servo |
| Electricity Supply | : | 220VAC, 500W |
| Type of Feeders | : | Pneumatic + Electric Feeder |
| Drive Motor | : | Panasonic Servo Motor A6 |
| Vibration Feeder | : | Selectable |
| Net Weight | : | 280Kgs |
| Gross Weight | : | 360Kgs |
