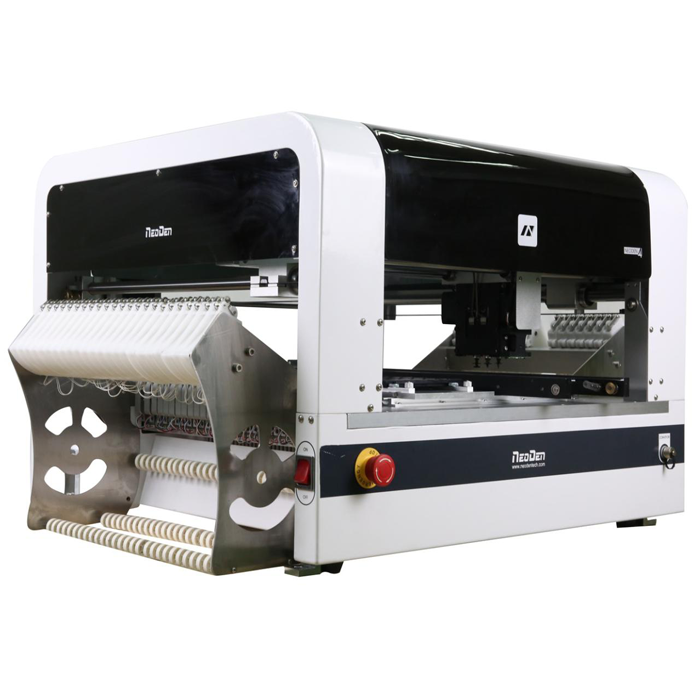

NeoDen N4+
ChipMax Proudly Introduces the 5th Generation SMT Desktop Pick and Place machine from NeoDen, with Highly Intelligent Flying Vision System, and First of its kind.
ChipMax Proudly Introduces the 5th Generation SMT Desktop Pick and Place machine from NeoDen, with Highly Intelligent Flying Vision System, and First of its kind.

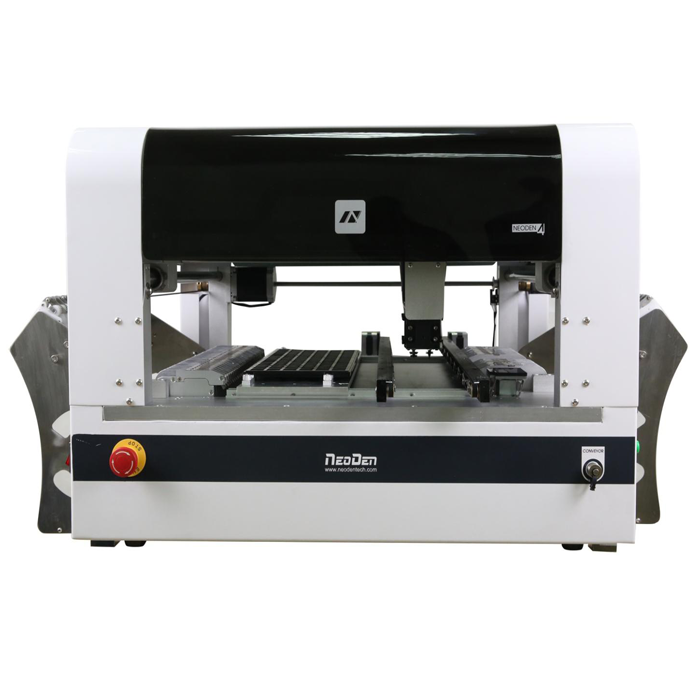

| ● Built-in Automatic Conveyor System: mounting capability 1.2 meters external conveyor Complete Process Automation Complementing the of the machine up to PCB size. Also synchronizing the links to both Solder Paste Printer & Reflow Oven to Ensure Complete Automation. |
| ● Integrated Industrial Host & Solid-State Drivers: To achieve high Stable & Sturdy performance, Quick response to each process with high Power-off Protection. The machine Firmware supports remote system up gradation. |
| ● High Speed Flying Vision Camera System: MICRON High Speed Industry Camera, to Identify, Detection & Auto calibrate on Flying mode, with high speed and accurate. The top & Bottom camera systems the different components of the 4 heads, at Once, positioned at non obstruction work area. |
| ● Four Heads with 360 Degree Orientation: The mounting head is designed in a suspended, fully symmetric & high degree coupling way, to ensure High speed component mounting Yet gentle & smooth operation Efficient Component detection system supports both vacuum detection & vision inspection. |
| ● Universal Interface port: Apart from machine’s automated performance, this facility ensures process automation also by linking external conveyor. |

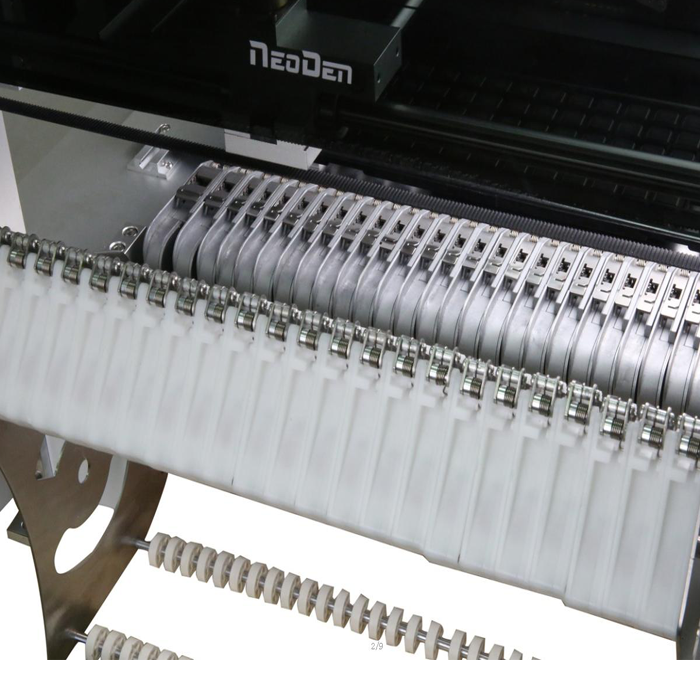

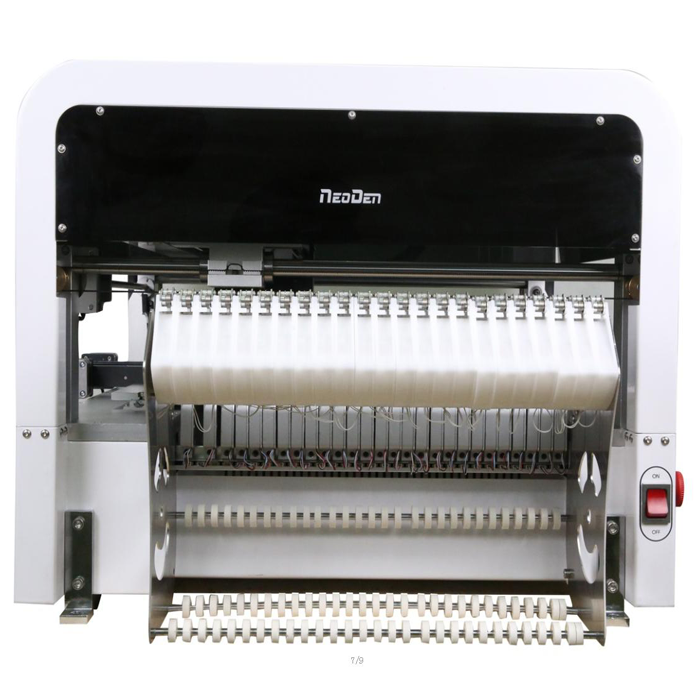

| ● Automatic Electric feeders with brush less motor: Patented, electronic feeders design adopts new technique-feeding system with Auto error corrections to ensuring smooth error free feeding and precious picking with the most accurate pickup point. |
| Placement Capacity | : | 5000CPH (vision off), 3500CPH (vision on) |
| Placement Accuracy | : | ±0.02mm (Repeatable Positioning Precision) |
| Applicable Component | : | Min 0201, Max 30*30mm IC, BGA, QFN |
| Applicable PCB Size | : | 290mm*1200mm / 290mm*400mm |
| Automatic Electric Feeders | : | Maximum 48 Sets |
| Power Supply | : | 220V / 160W |
| Equipment Weight | : | 80Kg |
| External Dimension (LxWxH) | : | 600x850x460mm |
