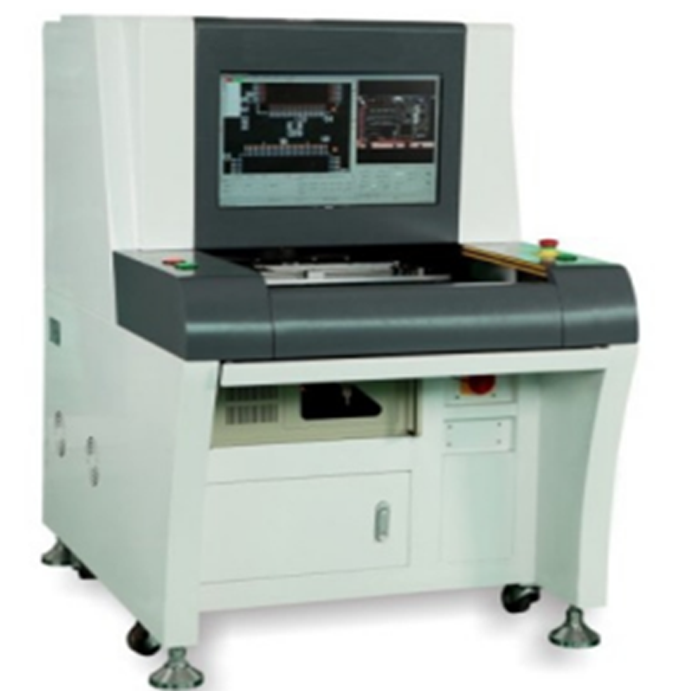

ND-880

The ND-880 is a technologically advanced offline Automatic Optical Inspection (AOI) machine designed for high-precision PCB inspection. It features a high-speed digital camera with options ranging from 5 to 20 million pixels, ensuring exceptional image quality and stability. Powered by Windows 7 x64 and an independent GPU, it delivers fast data processing and efficient image analysis. The machine is equipped with a high-resolution telecentric lens for accurate defect detection and smart programming that offers easy operation, high detection rates, and low error margins. Its flexible maintenance capabilities include mobile device access, wireless networking, and SQL data integration for detailed SPC analysis. Additionally, the ND-880 supports efficient offline programming and real-time PCB image capture, making it a reliable and versatile solution for modern electronics manufacturing.

Features

● High-Speed Digital Camera: Offers 5-20 million pixel options for superior image quality and stability.
● Advanced Image Recognition: Automatically sets parameters like shift, polarity, and short circuit for diverse inspection needs.
● SPC Statistical Function: Records and analyzes test data, providing insights into production and quality status.
● PCB Transmission System: Features bottom-up fixing, automatic PCB deformation compensation, and adjustable width.
● PCB Transmission System: Features bottom-up fixing, automatic PCB deformation compensation, and adjustable width.
● Efficient Data Processing: Powered by Windows 7 x64 and an independent GPU for fast and balanced system performance.
● Smart Maintenance: Enables flexible maintenance via mobile devices, wireless networks, and SQL data integration.

Technical Parameters

Application : After stencil printing, pre/post reflow oven, pre/post wave soldering, FPC etc.
Program Mode : Manual programming, auto programming, CAD data importing
Inspection Items : *Stencil printing: Solder unavailability, insufficient or excessive solder, solder misalignment, bridging, stain, scratch etc. *Component defect: missing or excessive component, misalignment, uneven, edging, opposite mounting, wrong or bad component etc. *DIP: Missing parts, damage parts, offset, skew, inversion, etc *Soldering defect: excessive or missing solder, empty soldering, bridging, solder ball, IC NG ,copper stain etc.
Calculation Method : Machine learning, colour calculation, colour extraction, gray scale operation, image contrast, OCV/OCR etc.
Inspection Mode : PCB fully covered, with array and bad marking function
SPC Statistics Function : Fully record the test data and make analysis, with high flexibility to check production and quality status
Minimum Component : 01005 chip, 0.3 pitch IC
Camera Lens Resolution : 5 million pix full color high speed industrial digital camera , 20 million pix camera optional 10um/15um/18um/20um/25um, can be custom-made
Lighting Source : Annular stereo multi-channel color light, RGB/RGBW/RGBR/RWBR optional
CPU : Intel E3 or same level
RAM : 16GB
HDD : 1TB , (SSD optional)
OS : Win 7.1, 64bit
Monitor : 22‘, 16:10
Moving and Inspection : Manual taking board in and out, Y servo motor driving PCB, X servo motor driving
Mechanical System; Mode : camera
PCB Dimension : 20*20mm(Min) ~ 450*350mm(Max), can be customized
PCB Thickness : 0.3 ~ 5.0mm
PCB Weight : Max: 3KG
PCB Edge : 3mm, can be custom-made base on need
PCB Bending : <5mm or 3% of PCB Diagonal length
PCB Component Height : Top: 35mm, Bottom: 75mm Adjustable, can be custom-made base on need
XY Driving System : AC servo motor, precise ball screw
XY Moving Speed : Max: 830mm/s
XY Positioning Accuracy : <8um
Machine Dimension : L1200 * W900 * H1500 mm
Power : AC220V, 50/60Hz, 1.2KW
PCB Height from Ground : 820±20mm
Machine Weight : 450KG
Safety Standard : CE safety standard
Environment Temperature and Humidity : 10 ~ 35 C, 35 ~ 80% RH (non condensing)
Configuration : Maintenance station, offline programming system, SPC servo, bar code
