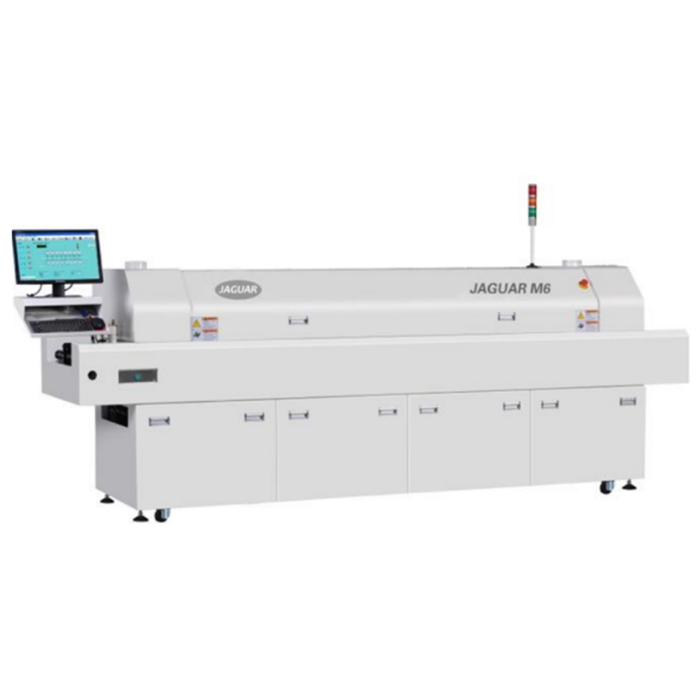

M6

This system boasts a unique long-life heating mechanism with Swedish nickel heaters, enhancing efficiency and thermal ramp-up with a curved reflector. Its forced-air circulation ensures uniform PCB heating, eliminating "shadow effects," while high temperature- resistant materials and a quiet, low-maintenance blower motor further improve reliability. The conveyor system features a stable STK adjustable speed motor, durable mesh belt, and precise speed control. The electrical control system utilizes imported thermostats, rapid-response thermocouples, and solid-state relays for high-precision, uniform temperature control. Additionally, it offers fast heating, failure diagnosis with alarms, and a delay shutdown function for safe cooling.

Features

● Long-Life Heating Mechanism: Equipped with Swedish nickel heaters and a curved reflector for improved efficiency and thermal ramp-up.
● Uniform Heating: Forced-air circulation eliminates "shadow effects," ensuring even PCB heating.
● Reliable Conveyor System: Includes a stable STK adjustable speed motor, durable mesh belt, and precise speed control.
● Advanced Electrical Control: Uses imported thermostats, rapid-response thermocouples, and solid-state relays for uniform and precise temperature management.
● Smart Safety Features: Offers failure diagnosis with alarms and a delay shutdown function for safe cooling.
● Low-Maintenance Operation: Built with high-temperature-resistant materials and a quiet blower motor to enhance reliability.

Technical Parameters

Number of Heating Zone : Top 6 / Bottom 6
Top 6 / Bottom 6 : 2500mm
Heating Style : Hot Air
Number of Cooling Zone : Up 1 / Bottom 1
Cooling Style : Forced Cooling Air
Max. Width of PCB : 300mm
Mesh Belt Width : 400mm
Conveyor Direction : L→R (or R→L)
Process Height : 900±20mm
Conveyor Type : Mesh and Chain
Conveyor Speed : 300-2000mm/min
Manual Lubrication : Standard
Hood Opening : Electrical Screw Pole
Fixed Track : Front Track Fixed (Option: Rear Rail Fixed)
Product Clearance : 30mm
Power Supply : 5-line 3-phase 380V 50/60Hz
Startup Consumption : 30/17kW
Steady Consumption : 3-5kW
Ramp Up Time : About 20 mins
Temp. Setting Range : Room Temperature to 300 C
Temp. Control Method : PLC + PC
Temp. Control Precision : ±1.5 C
Data Storage : Process Data and Status Storage (80GB)
Nozzle Plate : Aluminum Alloy Plate
Abnormal Alarm : Abnormal Temperature (Overtemp/Low temp.)
Board Dropped Alarm : Tower Light: Amber-warming, Green-normal, Red-abnormal
Dimension (LWH) : 3700×1100×1450mm
Weight : 900kg
Color : Computer Grey
